Double Circuits 18KW Shell And Tube Condenser

Product Categories
Wuhan Qiaoxin Refrigeration Equipment CO., LTD
Contact Now

Double Circuits 18KW Shell And Tube Condenser

Brand Name : GREEFOUN

Model Number : QXU128S14

Certification : CE

Place of Origin : CHINA

MOQ : 1piece

Payment Terms : TT, L/C, Western Union

Supply Ability : 100000pieces/year

Delivery Time : within 15days

Packaging Details : Standard Export Package

Refrigerant : R22,R134a,R407C,R410A

Application : Chiller industry

Circuit : double circuit

Cooling capacity : 18KW~3000KW

Heat exchange tube : Copper Tube

Color : Customized

Contact Now

18kw shell and tube type condenser straight tube double circuits

U Shaped Tube Dry Type Evaporator (Single Circuit)

(Capacity) 18KW TO 270KW

Models

 QXU18S5 QXU47S6 QXU65S8 QXU135S8 QXU185S10 QXU270S10

Rated data

Refrigerant R22

ti=12°C te=2°C

tu=7°C Dts=5°C

 Qn KW 18.6 47 65 135 185 270

Kcal/h

(×103 )

 16 40.4 56.7 116 159 232
Wn m3 /h 4 8 11.4 23.2 31.8 46.4
Wm m3 /h 6.3 11.4 14.5 28 41 65
Dpn bar 0.16 0.41 0.39 0.44 0.36 0.42

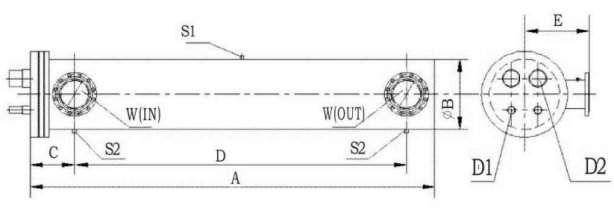

Size(mm)

 A 887 1407 1431 2115 2320 2654
B 140 168 219 219 273 273
C 97 107 161 180 200 234
D 690 1190 1180 1830 2000 2280
E 180 200 200 240 300 300

Inlet/Outlet Size

 W(DN) 40 50 65 80 100 100
D1(mm) 22 22 22 35 35 35
D2(mm) 35 35 54 54 67 80
Weight kg 49 78 93 155 232 289

Notes: Qn Rated Refrigerating Capacity Wn Cooling Water Flow

Wm Maximum Cooling Water Flow Dpn Circulating Cooling Water Pressure Drop

Dts Superheat Temperature

U Shaped Tube Dry Type Evaporator (Double Circuit)

(Capacity) 35KW TO 310KW

Models

 QXU35D6 QXU65D8 QXU95D8 QXU185D10 QXU270D10 QXU310D10

Rated data

Refrigerant R22

ti=12°C te=2°C

tu=7°C Dts=5°C

 Qn KW 35 65 95 185 270 310

Kcal/h

(×103 )

 30.2 56.7 81.7 159 232 267
Wn m3 /h 6 11.4 16.4 31.8 46.4 53.3
Wm m3 /h 10 14.5 21 41 65 68
Dpn bar 0.27 0.39 0.46 0.36 0.42 0.43

Size(mm)

 A 1275 1431 1781 2320 2654 2654
B 168 168 219 219 273 273
C 107 161 200 200 234 234
D 1040 1180 1530 2000 2280 2280
E 200 240 240 300 300 300

Inlet/Outlet Size

 W(DN) 50 50 65 89 114 114
D1(mm) 16 22 22 22 35 35
D2(mm) 22 35 35 42 54 54
Weight kg 72 93 136 232 279 296

Notes: Qn Rated Refrigerating Capacity Wn Cooling Water Flow

Wm Maximum Cooling Water Flow Dpn Circulating Cooling Water Pressure Drop

Dts Superheat Temperature

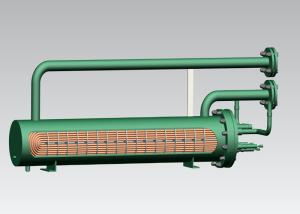

Double Circuits 18KW Shell And Tube Condenser

The hot medium of the water-cooled cooler is the inlet of the pipe, which flows in a tortuous way to the outlet of the pipe through each channel.The cooler medium adopts double pipe flow, that is, the cooler medium enters half of the cooler tube from the water inlet through the dividing water cover, and then flows into the other half of the cooler tube from the return water cover to the other side of the dividing water cover and the outlet pipe.In the process of double-pipe flow, the waste heat from absorbing medium is discharged from the outlet, so that the working medium keeps the rated working temperature.
